Product Summary

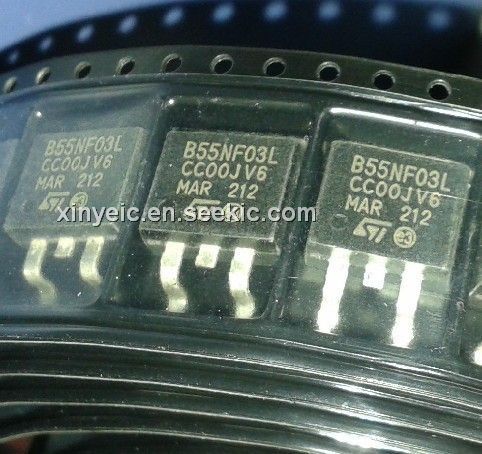

The STB55NF03L is an N-CHANNEL 30V-0.01Ω-55A D PAK STripFET power mosfet. The resulting transistor of the shows extremely high packing density for low on-resistance,rugged avalance characteristics and less critica alignment steps therefore a remarkable manufacturing reproducibility.Appplications of the STB55NF03L include: LOW VOLTAGED C-DC CONVERTERS, HIGHCURRENT, HIGH SPEED SWITCHING and HIGH EFFICIENCY SWITCHING CIRCUITS.
Parametrics
STB55NF03L absolute maximum ratings: (1) Drain-source Voltage (VGS=0) , VDS: 30V; (2) Drain-gate Voltage(RGS=20kΩ) VDGR: 30V; (3) Gate-source Voltage VGS: ±20V; (4) Drain Current(continuous) at Tc=25°C, ID: 55A; (5) Drain Current(continuous) at Tc=100°C, ID: 39A; (6) DrainCurrent (pulsed) IDM: 220A; (7) Total Dissipation at T=25°C, Ptot: 80W; (8) Derating Factor: 0.53°C/W; (9) Storage Temperature Tstg: -65 to 175°C; (10) Max. Operating Junction Temperature Tj: 175°C.
Features
STB55NF03L features: (1) Typical (on) =0.01Ω; (2) optimized for high switching operations; (3) low gater charge; (4) logic level gate drive.

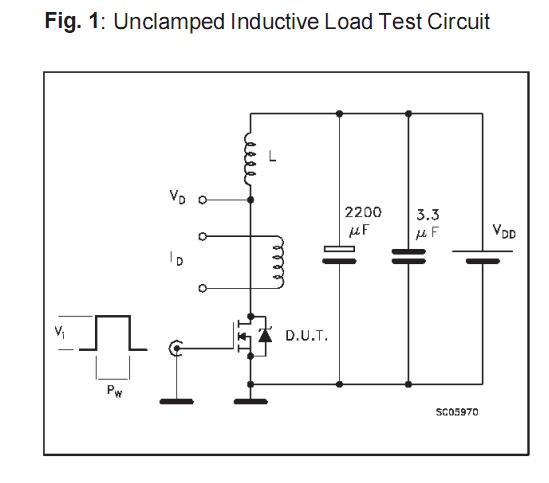

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STB55NF03L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
STB55NF03L-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
STB55NF03LT4 |
STMicroelectronics |
MOSFET N-Ch 30 Volt 55 Amp |
Data Sheet |
|
|
||||||||||||
