Product Summary

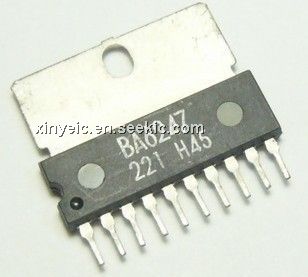

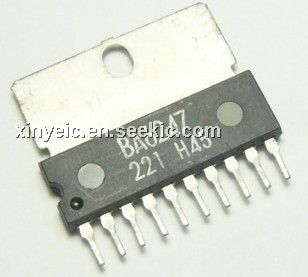

The BA6247 is a monolithic IC incorporating two reversible-motor drivers. The IC differs in the control logic and output mode.
Parametrics
BA6247 absolute maximum ratings: (1)Power supply voltage, VCC: 20V; (2)Power dissipation, PD: 1000mW; (3)Operating temperature, Topr: -25 to 75℃; (4)Storage temperature, Tstg: -55 to 125℃; (5)Input voltage, Vin: -0.2 to 6V; (6)Output current, IO: 1.0A.
Features
BA6247 features: (1)Two reversible-motor drivers in each unit; (2)Built-in thermal shutdown circuit; (3)Output voltage can be set arbitrarily; (4)Available in a compact SIP10pin package (BA6246N, BA6247N) or a HSIP10pin package with radiation fins (BA6247); (5)Available in a HSOP25pin surface-mount package (BA6247FP-Y).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA6247 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers IC MOTOR DRIVER |
Data Sheet |
|
|
||||||
 |
BA6247FP-Y |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
BA6247FP-YE2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers REVERSIBLE MOTOR DRIVER |
Data Sheet |
|
|
||||||
|
BA6247N |
Other |
|
Data Sheet |
Negotiable |
|
||||||
