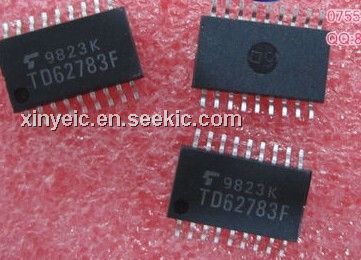

Product Summary

The TD62783F is an 8ch high-voltage source driver comprised of eight source current transistor array. The driver is specifically designed for fluorescent display applications. The applications of the TD62783F include relay, hammer and lamp drivers.

Parametrics

TD62783F absolute maximum ratings: (1)Supply voltage, AP, AF, VCC: 50V; F, VCC: 35V; (2)Output current, Iout: -500mA/ch; (3)Input voltage, VIN: 15V; VIN: 30V; (4)Clamp diode reverse voltage, AP, AF, VR: 50V; F, VR: 35V; (5)Clamp diode forward current, IF: 500mA; (6)Power dissipation, AP, PD: 1.47W; F, AF, PD: 0.96W; (7)Operating temperature, Topr: -40 to 85℃; (8)Storage temperature, Tstg: -55 to 150℃.

Features

TD62783F features: (1)High output voltage, type-AP, AF: VCC=50V min; type-F: VCC=35Vmin; (2)Ouput current(single output), Iout=-500mA min; (3)Output clamp diodes; (4)Single supply voltage; (5)Input compatible with various types of logic; (6)Package type-AP: DIP-18pin; (7)Package type-F, AF: SOP-18pin.

Diagrams

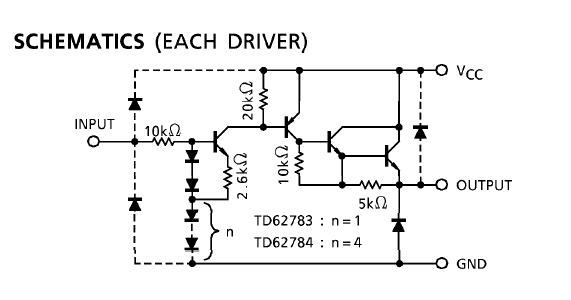

TD62783F block diagram
